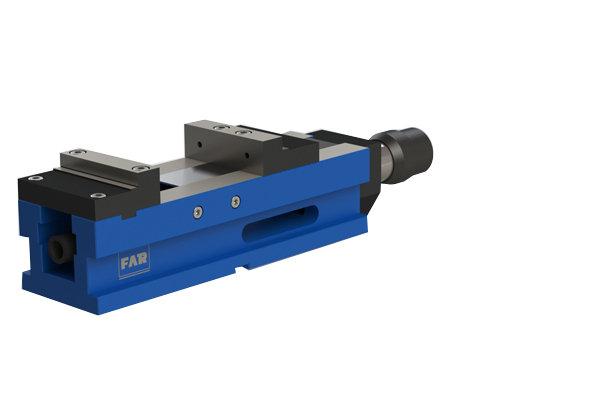

Hydro Mechanical Vise

FAR hydro mechanical vise Achieves a high clamping force with out any hammering or crank handle

Ideal for heavy duty clamping in milling machine

Mono block avoids deformation with great rigidity

Fitted with a high pressure hydraulic intensifier which does not require any external supply

MODEL CLAMPING STATION LENGTH HEIGHT WIDTH JAW HEIGHT OPENING
MIN
OPENING
MAX
CLAMPING FIELDS
S
WEIGHT     Kg CLAMPING FORCE
FRHV-duo-125 1 410 140 126 40 0 200 S1=0-200, S2=80-285,
S3=155-355
38 4000 KgF
FRHV-duo-125R
(REGULATOR)
1 410 140 126 40 0 200 38 4000 KgF
FRHV-duo-160 1 570 160 161 50 0 310 S1=0-310, S2=106-416,
S3=174-484
75 5000 KgF
FRHV-duo-160R
(REGULATOR)
1 570 160 161 50 0 310 75 5000 KgF
FRHV-duo-200 1 570 173 201 63 0 302 S1=0-302, S2=114-416,
S3=182-484
100 5000 KgF
FRHV-duo-200R
(REGULATOR)
1 570 173 201 63 0 302 100 5000 KgF



vice modular clamping field
